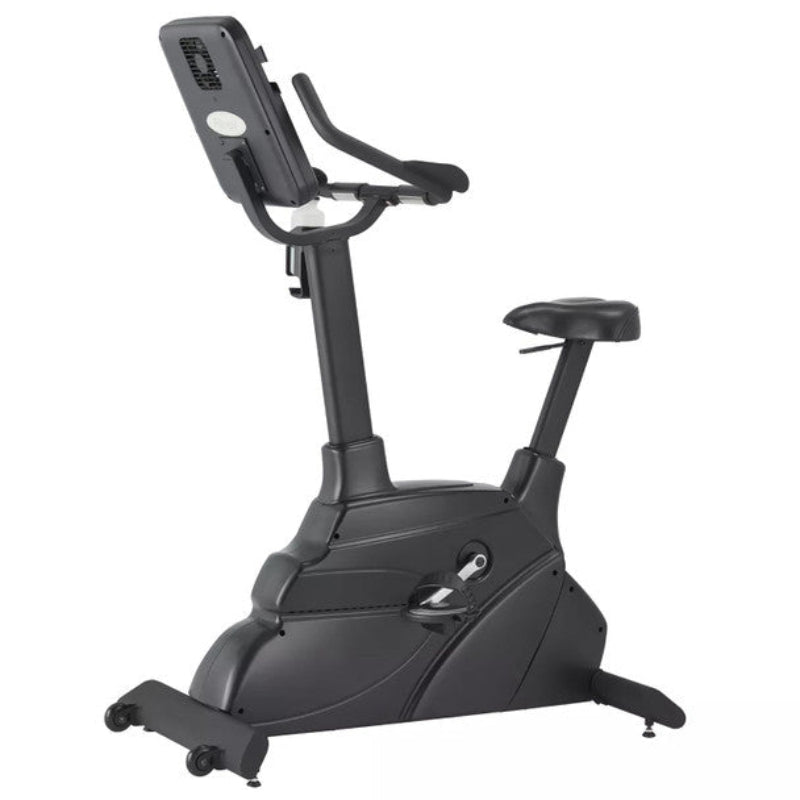

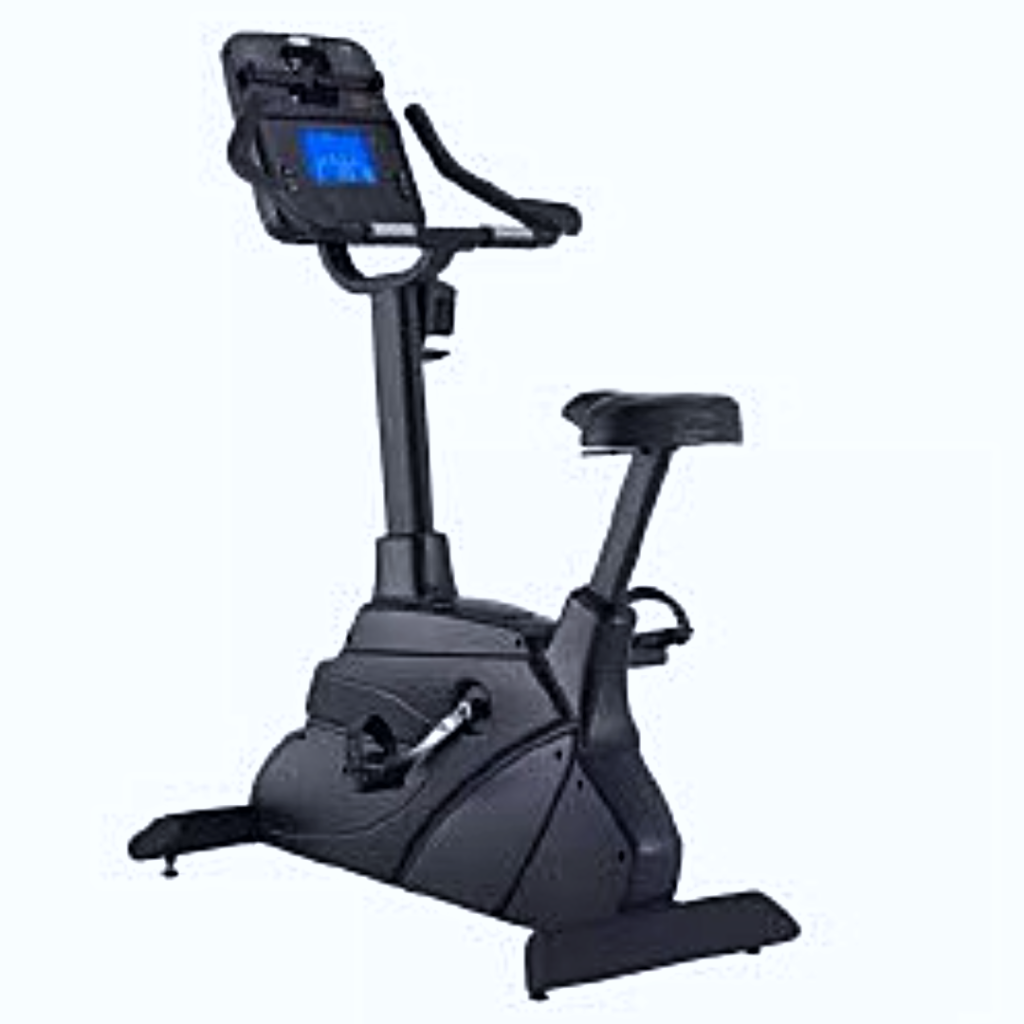

FMI Fitnex B65 Upright Bike | 24 Resistance Levels | Self-Powered | 7.5" LCD Display | 400 lb Capacity

Summary
Upright exercise bike with self-powered console, step-through access, and 24-level magnetic resistance for home or light commercial training.

Overview
The FMI Fitnex B65 Upright Exercise Bike supports steady cardio with a steel frame, protective shroud, and smooth ECB magnetic resistance. You shift through 24 electronically controlled levels while the self-powered console tracks time, speed, distance, RPM, pulse, calories, and watt output. The upright seat adjusts vertically to help you find strong alignment, and the 400 pound limit supports a wide range of users in home gyms or light-use facilities.

Set Components

• Fitnex B65 upright bike

• Assembly hardware

• User manual

Installation and Setup

• Place the bike on a stable, level floor

• Lay a protective mat under the frame

• Leave space around the 42 by 24 inch footprint

• Assemble with two adults following the manual

• Tighten all fasteners and check the frame, cranks, and shroud

• Adjust the seat height for full leg extension

• Confirm the seat lock holds firm before first use

• Roll the bike into position with the transport wheels

• Pedal to power the console and test all resistance levels

Operation and Maintenance

• Inspect the frame, seat post, pedals, straps, and console before each session

• Lock the seat height before sitting down

• Step onto the bike carefully and secure your feet in the straps

• Start pedaling to activate the display

• Shift resistance levels through the console

• Track effort using speed, RPM, watts, and heart rate sensors

• Keep hands clear of the crank arms

• Allow pedals to stop fully before stepping off

• Wipe the frame, seat, and handlebars after each ride

• Follow the manual for periodic checks and service

Features

• Steel frame with protective shroud

• ECB magnetic resistance with 24 electronic levels

• Self-powered console

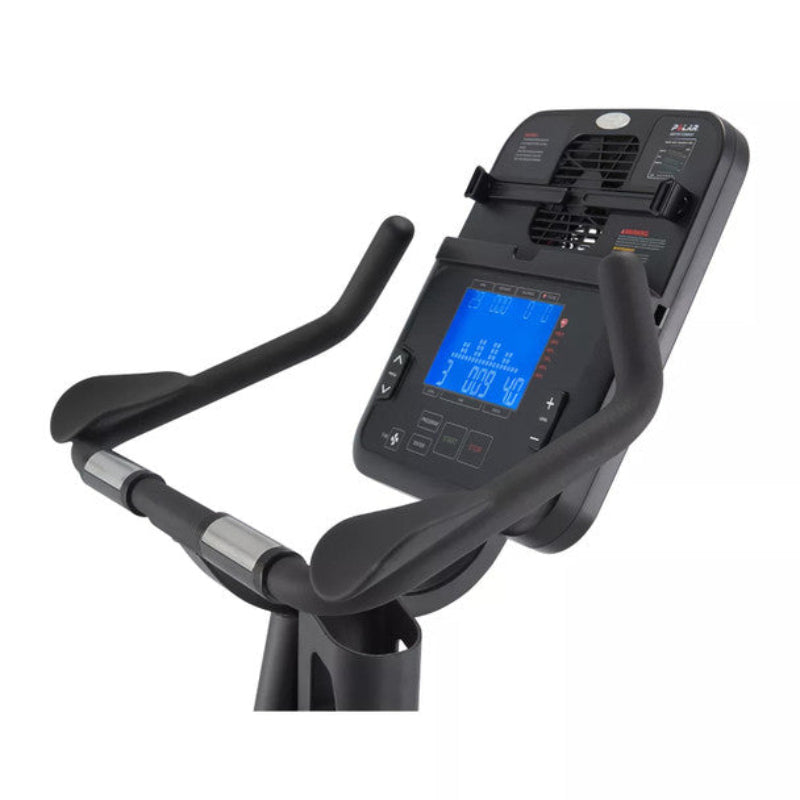

• 7.5 inch backlit LCD display

• Eight workout modes

• Contact and wireless heart rate monitoring

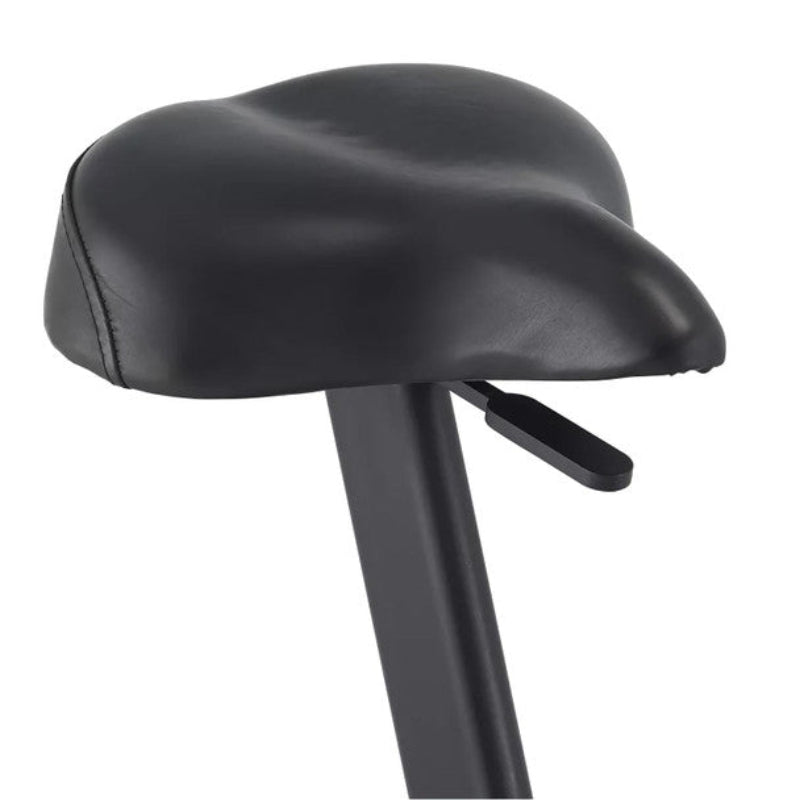

• Multi-position vertical seat adjustment

• Self-balancing pedals with adjustable straps

• Water bottle holder

• Mobile app compatibility

• Transport wheels

Benefits

• Ride in an upright position that supports efficient pedaling

• Adjust the seat height for proper alignment

• Shift resistance smoothly across a wide range

• Track performance without a power outlet

• Follow preset programs to guide your training

• Monitor heart rate with contact or wireless options

• Keep feet secure with self-balancing pedals

• Move the bike more easily with built-in wheels

• Set up workouts in homes or light commercial spaces with simple installation

• Frame: steel construction with protective shroud

• Bike Type: upright stationary bike

• Resistance: ECB magnetic, electronic control

• Levels: 24

• Power: self-generating

• Watt Range: 20–450W (30–90 RPM)

• Max User Weight: 400 lb

• Display: 7.5 inch LCD with LED backlight

• Feedback: time, distance, RPM, pulse, resistance, speed, calories, watts

• Programs: manual, cardio, fat burn, interval, training, HRC, two custom

• Heart Rate: contact sensors and wireless receiver compatible

• Size: about 42 L x 24 W x 56 H inches

Included Components

• Fitnex B65 upright bike

• Assembly hardware

• User manual

For general fitness use only. This bike is not medical equipment and does not diagnose, treat, cure, or prevent any condition. Speak with a healthcare professional before you start, especially if you manage heart, blood pressure, joint, back, respiratory, or metabolic concerns, past cardiac events, recent surgery, pregnancy, or long inactivity. Stop at once if you feel chest pain, shortness of breath, dizziness, faintness, or joint pain. Lock the seat before every ride, let the pedals stop before you step off, keep children and pets away from moving parts, stay within the 400 pound weight limit, use a stable mat, and follow all safety and maintenance steps in the manual.
